OpenID Connect

The E-Ident service uses the OpenID Connect (OIDC) as one of two possible identification protocols. This page outlines the identification process, the identification parameters and the ID Token.

OpenID Connect identification

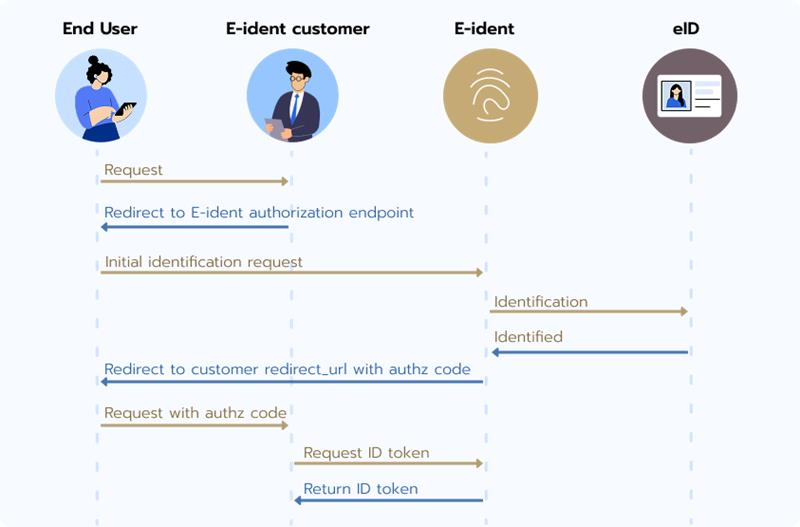

Identification in E-Ident can be done using the OIDC protocol and the implementation supports the Authorization Code Flow with the optional PKCE and CIBA flows. The figure below illustrates the identification sequence when using OIDC.

The end user accesses the E-Ident customer site with a request to log on.
The end user browser is redirected to E-Ident to begin identification. Sample identification request: https://www.ident-preprod1.nets.eu/its/index.html?client_id= <client_id>&response_type=code&redirect_uri=<redirect_uri>&scope=openid+ssn&state=2017-06-12-15.12.43.345354&nonce=386145d332342
Read more about the mandatory and optional parameters below.
End user identification is initiated towards a selected eID. The end user supplies his/her credentials.
E-Ident redirects the end user to the E-Ident customer's redirect_uri by appending the query string
?code=<authorization code>. Similarily, the state parameter, as sent by the customer, is also appended to the redirect_uri.
The E-Ident customer requests an ID Token based on the authorization code. Successive token requests with the same authorization code (code) will result in error and invalidation of previously accessed tokens.

PKCE flow

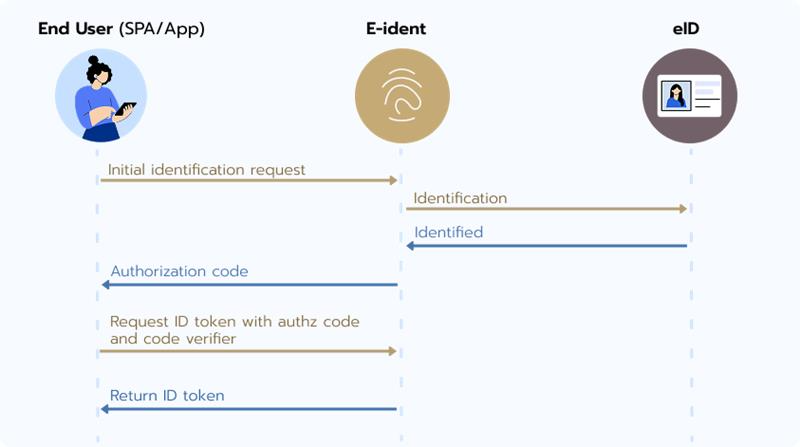

The Proof Key for Code Exchange (PKCE) flow allows Single Page Application (SPA) and native apps to retrieve the ID token directly in a secure way without revealing the password and not through a backend call. The flow is optional and works likes this:

Customers must generate a code_verifier value
Optionally the customers transforms the code_verifier value and sends it as a code_challenge to the E-Ident service along with the identification request. The customers may also optionally send the code_challenge_method (SHA-256 or plain) along with the identification request.
After authentication, the code_verifier is sent when retrieving the token. The E-Ident service will verify the code_verifier against the original challenge, using the specified method (SHA-256 or plain).

CIBA flow

Standard authentication using OIDC relies on the user agent (user's browser) first access the OIDC provider to initiate the session. The response from the provider is a web UI that guides the user through the authentication sequence.

The Client Initiated Backchannel Authentication (CIBA) flow enables authentication sessions to be initiated and processed in a different channel than the browser through the E-Ident web UI.

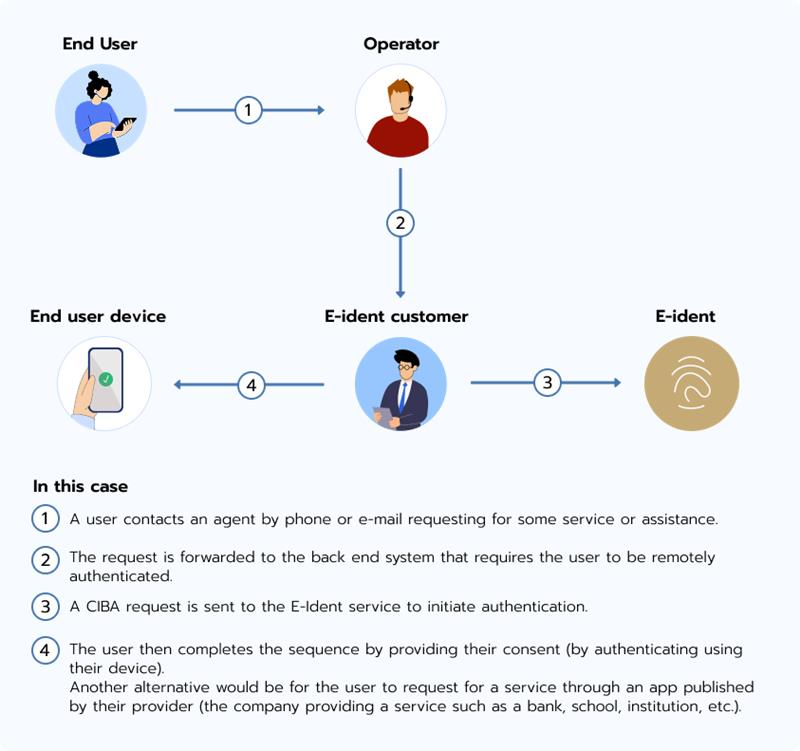

The following diagram illustrates a CIBA flow use case:

After authentication in the user device, the service provider in this use case can retrieve the ID token from the E-Ident service.

Implementation

To implement the backchannel flow, customers will need to follow the following sequence:

call the CIBA endpoint to start a new authentication transaction. See CIBA specific identification parameters below.
use the response to start user authentication (user consent)
wait for the user complete(alternatively, poll the server for updates)
retrieve the ID token

Requesting for a CIBA transaction

.txt

CODE

curl -kiSs \
https://www.ident-preprod1.nets.eu/oidc/ciba \
-H Authorization: Basic <<Base64Enocoded username:password>> \
-d scope=openid \
-d amr_values=passport_reader

Upon success, the server will respond with a unique ID that is bound to the new session

.sh

CODE

{"auth_req_id":"c69597e96f5a4dcc970ec38e5a85a4c3","interval":5,"expires_in":600}

The auth_req_id is a session ID that can be provided to the authentication app to facilitate consent confirmation (authentication).

Requesting for CIBA transaction with login hint and binding message

When starting a CIBA transaction with IN Groupe ID verifier, the following optional parameters ntdr-doc-types and ntdr-app-doclist can be sent through binding_message. ntdr-doc-types parameter accepts the following values: I, P, D and V. These alphabets mean ID cards, Passport booklets, Driver's license and Viza/crew credentials respectively. ntdr-app-doclist parameter accepts boolean value indicating whether the document type selection page will be shown to the user.

For IN Groupe ID Verifier, binding_message will accept value in JSON format.

A valid JSON format for binding_message is:

{

"ntdr-doc-types": "<I, V, D, P>" (multiple values, with comma separation, are allowed),

"ntdr-app-doclist": "<true/false>"

}

BankID (NO)

When starting a CIBA transaction with Norwegian BankID, it's required to specify the end user's identity. This is done by passing the login_hint parameter with the correct data depending on the authentication method.

BankID (SE)

For BankID (SE), it's optional to specify login_hint. If login_hint is provided, then that will be used to exclude other user's SSN than the provided SSN.

The binding message will accept values in text or JSON format which will appear on the end user's device. BankID SE supports two ways of CIBA authentication depending on the amr_values parameter.

se_bankid

The “amr_values" can be passed as “se_bankid" which will return auth_req_id and autostart_token. Use this token to launch the app. Please refer https://www.bankid.com/en/utvecklare/guider/teknisk-integrationsguide/programstart for technical details.

se_bankid:mobile

The “amr_values" can also be passed as “se_bankid:mobile" which will return one additional token called qr_data, use this qr_data to create animated QR code which can be scanned by BankID app. Once the first QR code is created then the polling should be done every second for token endpoint. The qr_data will be returned in every polling which can be used to update the animated QR code every second.

Copy to clipboard

.txt

CODE

curl -kiSs \
https://www.ident-preprod1.nets.eu/oidc/ciba \
-H Authorization: Basic <<Base64Enocoded username:password>> \
-d scope=openid \
-d amr_values=se_bankid:mobile

Upon success, the server will respond with a unique ID and qr_data that is bound to the new session-

Copy to clipboard

.txt

CODE

{
    "auth_req_id": "5be667afc6624d938a370d70b79d1c44",
    "interval": 2,
    "qr_data": "bankid.553399f8-8e65-45b5-9b83-d17d2631d88a.0.f6a74ceaafbf31d5274b8b65ffe116c30eace8457870e7aa15beaa7842594efa",
    "expires_in": 600,
    "autostart_token": "753b0e6b-3342-4fc1-90de-657dc8e39d89"
}

Start polling for below endpoint-

Copy to clipboard

.txt

CODE

curl -kiSs \
https://www.ident-preprod1.nets.eu/oidc/token \
-H Authorization: Basic <<Base64Enocoded username:password>> \
-d grant_type=urn:openid:params:grant-type:ciba\
-d auth_req_id=5be667afc6624d938a370d70b79d1c44

Upon success, the server will respond with a qr_data -

Copy to clipboard

.txt

CODE

{
    "error": "authorization_pending",
    "error_description": "Consent confirmation is still pending",
    "qr_data": "bankid.80cc06dc-2686-4d4f-ad0b-73df09d76d80.11.64e6835d7bba6e9389449a4e7fca5e2aa9d56e01bb5c0ac5f014d16317a7d3b1"
}

A QR code generation library can be used to produce the QR code in the preferred size.

A valid JSON format for binding_message is-

{

“transactiontext": “base64encoded (content from merchant)",

“transactiontext_type": “<text/markdown>"

}

TrustID

When starting a CIBA transaction with TrustID, it's optional to specify the end user's identity. This is done by passing the login_hint parameter with the correct data depending on the authentication method. The binding_message parameter accepts JSON format which have data for message which will appear on end user's device, request type, user status etc.

A valid JSON format for binding_message is-

Copy to clipboard

.txt

CODE

{
  "requestType": "<provisioning/authentication>",
  "appId": "<appId value>",
  "bindingMessage": "<content from merchant>",
  "userStatus":"<active/locked >"
}

For more information go to TrustID.

MitID

When starting a CIBA transaction with MitID, it's required to specify the end user's identity. This is done by passing the login_hint parameter with the correct data. login_hint can be a CPR or a UUID. The binding_message parameter is used to specify the text that will appear on the end user's device.

Retrieving the CIBA ID token

.sh

CODE

curl -kiSs \
https://www.ident-preprod1.nets.eu/oidc/token \
-H "Authorization: Basic <<Base64Enocoded username:password>>" \
-d grant_type=urn:openid:params:grant-type:ciba \
-d auth_req_id=c69597e96f5a4dcc970ec38e5a85a4c3

The following E-Ident providers currently support the CIBA flow:

The following E-Ident providers currently support the CIBA flow:
- BankID (NO)
- BankID (SE)
- IN Groupe ID Verifier
- TrustID
- MitID

Identification request parameters

The different identification request parameters are divided in these sections:

Mandatory

Name	Description	Value
client_id	The customer identifier given upon registration. Often referred to as MID or merchant identifier. This is not the same as the MerchantID.	MID
redirect_uri	A URL to the customer resource that will process OIDC claims after authentication. One or more redirect_uri must be registered on the customer configuration. The URL the end user is going to be returned to must be set in the redirect_uri parameter when the customer initiates an identification. Note: Several redirect_uri URLs can be registered in the configuration. This means that you can use the same configuration for several test environments or production environments.	Customer redirect uri as registered in E-Ident.
response_type	OAuth 2.0 Response Type value that determines the authorization processing flow to be used, including what parameters are returned from the endpoints used. When using the Authorization Code Flow, this value is code.	code
scope	Scopes are used to retrieve the claims that are grouped in the below table. The optional values are custome scopes in E-Ident. None, one or more can be requested at the same time.	Mandatory scope: openid Optional: cert, email, organisation, phone, profile, ssn, address, nemid.pid, ageverifyxx Space-separated list.
state Opaque value used to maintain state between the request and the call back. Typically, Cross-Site Request Forgery (CSRF, XSRF) mitigation is done by cryptographically binding the value of this parameter with a browser cookie. The customer should check the value of this parameter against the value returned by E-Ident after identification. If it does not match, error should be thrown. Unique random value Max length: 500 bytes (UTF-8)	Opaque value used to maintain state between the request and the call back. Typically, Cross-Site Request Forgery (CSRF, XSRF) mitigation is done by cryptographically binding the value of this parameter with a browser cookie. The customer should check the value of this parameter against the value returned by E-Ident after identification. If it does not match, error should be thrown. Unique random value Max length: 500 bytes (UTF-8)	Opaque value used to maintain state between the request and the call back. Typically, Cross-Site Request Forgery (CSRF, XSRF) mitigation is done by cryptographically binding the value of this parameter with a browser cookie. The customer should check the value of this parameter against the value returned by E-Ident after identification. If it does not match, error should be thrown. Unique random value Max length: 500 bytes (UTF-8)

Optional

Name	Description	Value
additional_info	The additional info parameter can be used by any customer to enter their own information. The parameter value will be returned as it was entered in the corresponding claim in the ID Token or attribute in the SAML assertion. In addition, the information is added to E-Ident statistics and may be returned to the customers as part of statistics. The last part must be agreed with IN Groupe in each case.	Format: [A-Za-z0-9_\-åøæÅØÆ]{0,50} Max length: 50 characters
amr_values	Requested Authentication Method Reference values. This parameter contains 2 values separated by semicolon ( ; ). First value- Space-separated string that specifies the "amr" values that the Authorization Server is being requested to use for processing this Authentication Request, with the values appearing in order of preference. The authentication methods used for the authentication performed are returned as the amr Claim Value. This parameter is equivalent to the forcepkivendor parameter of SAML identification. Second value- Comma-separated string, this will give access to control the authentication method for a specific identification. The actual used authentication method will be returned in the amr claim/attribute.	First value:- One or more of: [no_bankid, no_bidmob, no_buypass, mitid, mitid:mitid_erhverv, se_bankid, se_bankid:mobile, fi_tupas, passport_reader, mobile_id, smart_id, verimi, verimi:idcard ] Second value:- One or more of: [urn:bankid:bid, urn:bankid:bis, loa.dipp.default, loa.dipp.2fa]
code_challenge	The code_challenge is created by SHA256 hash of the code_verifier and Base64 URL encode the resulting hash. If it is not possible to do the above transformation, the code_challenge may be set to the code_verifier value.
code_challenge_method	This parameter specifies the method used for the code_challenge parameter. S256: Transformed code_challenge Plain: code_challenge is the same as code_verifier If the parameter is not sent in the request, IN Groupe will assign plain as the default value.	Valid values: [S256 \| plain] Optional parameter in PKCE flow.
code_verifier	The code_verifier should be a high-entropy cryptographic random string.	Format: [A-Za-zO-9-._~] Min length: 43 char Max length: 128 char Mandatory in PKCE flow.
deflect	Where the redirect_uri should be opened. Options are to keep it in iframe (_self) or take over the page (_top).	Valid values: [_top, _self] Default: _top
id_token_hint	ID Token parameter for prompt=none
max_age	Maximum Authentication Age. Specifies the allowable elapsed time in seconds since the last time the end user was actively authenticated. If the elapsed time is greater than this value, then the customer should attempt to actively re-authenticate the end user. When max_age is used, the ID Token returned should include an auth_time Claim Value.	Integer value Example: 600 for 10 minutes
nonce	String value used to associate a client session with an ID Token, and to mitigate replay attacks. The value is passed through unmodified from the authentication request to the ID Token. Sufficient entropy must be present in the nonce values used to prevent attackers from guessing values.	Unique random value Max lenght: 500 bytes (UTF-8)
style	A customer with a specific typographic, layout, or colour scheme can provide a URL to a CSS style sheet. If provided, the given style sheet will be used when rendering web pages in a browser. Note: style is ignored if the wi parameter is set to “n” or not set at all.	Format: URL Range: only URLs to trusted domains are allowed by E-Ident. Trusted domains are a part of the customer configuration setup. This parameter overrides the URL issued to E-Ident during configuration.
ui_locales	The language used to provide user with information during identification. If not provided, then E-Ident uses the language specified by the web browser. If no supported languages are available in the browser, or the parameter, then English is used by default.	Supported language codes: [nb-NO \| nn-NO \| en-GB \| da-DK \| sv-SE \| fi-FI \| sv-FI]
wi	The wi parameter is used to indicate that the user interface shall be embedded UI. Note: The wi parameter may also be set to n to indicate standalone UI. However, as this is default UI option it is not necessary to use the wi parameter.	Valid values: [ r ]

Mapping of eID to amr_values parameter:

ID	amr_values parameter
BankID (NO)	no_bankid
BankID (SE)	se_bankid or se_bankid:mobile
Bank ID (FI)	fi_tupas
Buypass (NO)	no_buypass
MitID (DK)	mitid and/or mitid:mitid_erhverv
Mobile-ID	mobile_id
IN Groupe ID Verifier	passport_reader/id_verifier
Smart-ID	smart_id
Verimi	verimi and/or verimi:idcard

Optional eID Specific parameters

Name	Description	Constraints	eID
`aal_value`	Specifies the requested Authentication Assurance Level.	One of: `low` \| `substantial` \| `high`	MitID DK
`action_context`	Specifies the action context for identification.	One of: `[LOG_ON \| APPROVE \| CONFIRM \| ACCEPT \| SIGN]`	MitID DK (Currently supported)
`acr_values`	Sets the level of assurance for the identification.	Valid values: `urn:eident:acr:level:low` `urn:eident:acr:level:substantial` `urn:eident:acr:level:high`	BankID (NO), BankID (SE), MitID DK, Finnish Bank ID (FI), Mobile-ID, Buypass, Verimi, IN Groupe ID Verifier
`amr_values`	Sets the authentication method for the identification.	Valid values: See the eID-specific page	Verimi, BankID (NO)
`autostart`	Skips first page and auto-selects BankID on this device.	Values: `true` \| `false`	BankID (SE)
`cellnr8`	8-digit mobile number for BankID on mobile (NO).	Encoding: Base64	BankID on mobile (NO)
`dob6`	6-digit date of birth for BankID on mobile (NO).	Encoding: Base64	BankID on mobile (NO)
`eident_context`	Display name in app. Finnish BankID (FI): Service provider name BankID (SE): Text in app	Base64 encoded JSON. See eID-specific page	Finnish BankID (FI) – Danske Bank, Ålandsbanken, S-Pankki, Aktia BankID (SE)
`forcebank`	Force bank selection. If not used, all configured banks will be shown.	One of: `nordea` \| `opbank` \| `danske` \| `handelsbanken` \| `aland` \| `sbak` \| `aktia` \| `popbank` \| `savingsbank` \| `omasp` \| `mobileid`	Finnish BankID (FI)
`loa_value`	Specifies requested Level of Assurance.	One of: `low` \| `substantial` \| `high`	MitID DK
`login_hint`	Pre-selected user ID to reduce steps for user.	See `login_hint` description on eID-specific pages	BankID (NO), BankID (SE), MitID DK, Mobilivarmenme (FI), Mobile-ID, Smart-ID, Verimi
`mobileid_display_text_format`	Format for display text.	Valid values: `UCS-2` (20 characters) `GSM-7` (40 characters default)	Mobile-ID
`presetid`	Pre-selected user ID to reduce steps for user.	See `presetid` description on eID-specific pages	BankID (NO), BankID (SE), MitID DK, Mobilivarmenme (FI), Verimi
`reference_text`	Reference text for MitID shown in the MitID app.	All characters allowed except: `< >`\nMax length: 130	MitID DK
`smartid_allowed_InteractionsOrderType`	Determines verification code screen behavior.	Valid values: See eID-specific page	Smart-ID
`smartid_displayText60`	Text shown in Smart-ID user app.	Max length: 60 characters	Smart-ID
smartid_displayText200	Text to be displayed in the Smart-ID user app.	th: 200 characters	Smart-ID
transactiontext	Transaction text: BankID security app/mobile app - displayed in the app Mobile-ID - displayed on the phone MitID - displayed in the user dialogue at the MitID broker AusweisApp – displayed to the user on the Ausweis app	Characters Max length: BankID SE: 600 characters Mobile-ID: UCS-2 20 characters, GSM-7 40 characters AusweisApp: 1800 characters
transactiontext_type	The type of the transaction text.	Valid values: [html \| text]	MitID (DK)
ntdr-app-doclist	Specifies whether to display document selection page in the mobile app for document scan i.e. to select passport or ID card.	Values: [true \| false] Default value is false.	IN Groupe ID Verifier
ntdr-doc-issuers	Specifies which issuing countries' documents to allow during ID verification. Accepts a list of allowed document issuers (ISO 3166) country codes.	Format: [A-Za-z] Example: MYT,KNA,SWZ Max length: 3 char	IN Groupe ID Verifier
ntdr-doc-types	Specifies a list of accepted document types. Accepts a pattern of one or two letter document codes.	Format: [A-Za-z] Min length: 1 char Max length: 2 char Supported document types: Passport, ID Card	IN Groupe ID Verifier
ntdr-expiry-grace	Enforces document validity check. If set, ID token will have failure response for expired documents. Can be positive or negative to adjust expiry grace period.	Example: 30 If set to 0 = failure for expired documents If set to -5 = failure for documents expiring in 5 days If set to 5 = failure for documents expired 5 days ago	IN Groupe ID Verifier
ntdr-info	Toggle if info page to download IN Groupe ID Verifier app should be shown.	Values: true \| false	IN Groupe ID Verifier
ntdr-facematch-min	Indicates the minimum acceptable face match level for successful authentication.	0-9	IN Groupe ID Verifier
ntdr-doc-types	Allowed document types. Accepts multiple values with comma separation.	I, P, D, V (I – ID Card, P – Passport Booklet, D – Driver’s License, V – Viza/Crew credentials)	IN Groupe ID Verifier
ntdr-app-doclist	Indicates whether to display document type selection page in mobile app for the user to select.	Values: true \| false	IN Groupe ID Verifier
ntdr-doc-issuers	Restricts the document issuer countries to the given list.	NOR for Norway, SWE for Sweden, etc (ISO-3166-1 alpha-3 cods)	IN Groupe ID Verifier

CIBA specific parameters

Name

Description

Constraints

amr_values

Requested Authentication Method Reference values. Can only contain a single value for CIBA transactions.

One of:

[no_bidmob, se_bankid, se_bankid:mobile,

passport_reader/id_verifier,trustid,mitid]

binding_message

Text to be displayed on the end user's device in text or JSON format (Base 64 encoded).

BankID on Mobile (NO): max 116 characters. Text format only.
BankID (SE): Text or JSON format
IN Groupe ID Verifier: Not supported
TrustID: JSON format

Signed request

E-Ident supports Signed Request Object (Signed JWT) in OIDC requests. Both request and request_uri parameters are supported as specified by the OIDC standard. E-Ident will do a RSA signature verification to make sure that the Request Object is signed by the expected E-Ident customer by using a public key associated with the client_id.

The customer will need to provide IN Groupe with one of the following options:

A URL to a JWKS endpoint where IN Groupe can look up a public key for signing purposes. It is optional to also provide a key id. Otherwise the first public key in the response from the endpoint will be used.
The RSA key members and the key type in JSON format.

If using the request_uri option, the request uri will have to be registered by In Groupe.

ID Token

The ID Token is a JSON Web Token (JWT) and is either signed or signed-then-encrypted. The default is signed. For more information on encryption, see ID Token Encryption section.

The ID Token signature should be validated using the public key that is mentioned in the kid element in JWT header. The corresponding key can be looked up from E-Ident’s JWKS endpoint.

The ID Token is valid for 15 minutes. Successive token requests with the same authorization code (code) will result in error and invalidation of previously accessed tokens.

scope parameter value from the identification request. The openid value must always be used while cert, profile and ssn is optional. All ID Token claims are listed here, sorted by the scope value. See examples in Step 3 on how to retrieve an ID Token.

openid

Claim	Description	Value/constraint
aal	Authentication Assurance Level	One of https://data.gov.dk/concept/core/nsis/Low https://data.gov.dk/concept/core/nsis/Substantial https://data.gov.dk/concept/core/nsis/High Applicable eID: MitID (DK)
action_context	Specifies the action context for identification	One of: [LOG_ON \| APPROVE \| CONFIRM \|ACCEPT \| SIGN] Applicable eID: MitID (DK) (Currently supported)
acr	The level of assurance for the specific identification.	Possible values are listed on the eID pages, which will be one of: [ urn:eident:cert:eidas:high\| urn:eident:cert:eidas:substantial\| urn:eident:cert:eidas:low ]
additional_info	The value of the additional info parameter if used.
amr	Auth Method Ref. JSON array of strings that are identifiers for authentication methods used in the authentication. In E-Ident, this is the eID type used in the identification.	One of: [no_bankid \| no_bidmob \| no_buypass \| mitid \| se_bankid \| fi_tupas \| fi_mobiilivarmenne \| passport_reader/id_verifier \| email \| idcard \| smart_id \| mobile_id ]
aud	Audience(s) that this ID Token is intended for.	The unique customer "MID" value.
auth_time	Time when the end user identification occurred.	The value is a JSON number representing the number of seconds from 1970-01-01T0:0:0Z as measured in UTC until the date/time.
bp_id_sub	Unique identifier from Buypass	Applicable eID: Buypass
bp_pid	Personal identifier of Buypass user	Applicable eID: Buypass
card_number	Card number of the end user	Applicable eID: Belgian eID (BE)
card_expiry_date	Expiry date of the end user's card	Applicable eID: Beligan eID (BE)
exp	Expiration time on or after which the ID Token must not be accepted for processing.	The value is a JSON number representing the number of seconds from 1970-01-01T0:0:0Z as measured in UTC until the date/time.
fi_trx_code	Unique but transient anonymous identifier for the end user. Remains the same in identity token and UserInfo responses during one authentication session, but is different in subsequent authentications of the same user.	Applicable eID: Mobiilivarmenne (FI)
fi_tupas_bank	The user’s bank used in the identification process.	One of: [nordea \| opbank \| danske \| handelsbanken \| aland \| sbank \| aktia \| popbank \| savingsbank \| omasp \| mobileid] Applicable eID: Finnish Bank ID (FI)
fi_tupas_pid	A fixed identifier for the user set in the E-Ident / FTN service.	Applicable eID: Finnish Bank ID (FI)
ial	Identity Assurance Level	One of https://data.gov.dk/concept/core/nsis/Low https://data.gov.dk/concept/core/nsis/Substantial https://data.gov.dk/concept/core/nsis/High Applicable eID: MitID (DK)
iat	Time at which the JWT was issued.	The value is a JSON number representing the number of seconds from 1970-01-01T0:0:0Z as measured in UTC until the date/time.
identity_type	Type of identification	Possible values are: private professional Professional indicates Erhverv user Applicable eID: MitID (DK)
iss	Issuer Identifier for the Issuer of the response. E-Ident issuer URI
loa	Level of Assurance	One of https://data.gov.dk/concept/core/nsis/Low https://data.gov.dk/concept/core/nsis/Substantial https://data.gov.dk/concept/core/nsis/High Applicable eID: MitID (DK)
mitid_amr	The list of authenticators used to achieve the resulting level of assurance for a MitID identification.	Possible values for MitID are: password code_token code_reader code_app code_app_enchanced u2f_token Possible values for MitID Erhverv are: mitid:password mitid:code_token mitid:code_reader mitid:code_app mitid:code_app_enchanced mitid:u2f_token Applicable eID: MitID (DK)
mitid.uuid	Unique identifier for MitID.	Applicable eID: MitID (DK)
mobileid_pid	Unique identifier of user in the E-Ident service.	Applicable eID: Mobile-ID
nemlogin.ial	Identity Assurance Level for Erhverv user	One of https://data.gov.dk/concept/core/nsis/Low https://data.gov.dk/concept/core/nsis/Substantial https://data.gov.dk/concept/core/nsis/High Applicable eID: MitID (DK)
nemlogin.persistent _professional_id	MitID Erhverv’s Global UUID/ID from EIA	Applicable eID: MitID (DK)
no_bid_pid	Norwegian BankID personal identifier.	Applicable eIDs: BankID (NO) and BankID on mobile (NO)
nonce	String value used to associate a Client session with an ID Token, and to mitigate replay attacks. The value is passed through unmodified from the Authentication Request to the ID Token.
notafter	Certificate validity end time.	Applicable eIDs: BankID (NO), BankID (SE)
notbefore	Certificate validity begin time.	Applicable eIDs: BankID (NO), BankID (SE)
phone_number	8-digit mobile/cell number (provided by merchant or user)	Applicable eID:
pid	Personal identifier. Content will vary from eID to eID.	See possible values in "Information about end user" section for each eID.
reference_text	Reference text from MitID and/or Erhverv transactions	Applicable eID: MitID (DK)
se_bid_securitylevel	Swedish BankID security level	Applicable eID: BankID (SE)
smartid_inter-action_flow_used	This value returns information about the type of Smart-ID interaction flow that was used. This can be one of: displayTextAndPIN verificationCodeChoice confirmationMessage confirmationMessageAndVerificationCodeChoice	Applicable eID: Smart-ID
smartid_pid	Unique identifier of user in the E-Ident service.	Applicable eID: Smart-ID
sub	Subject Identifier.	A string in the format "eID type:ID"
transaction_text	The transaction text sent through E-Ident is returned in this claim.	Applicable eID: BankID (SE), Mobile-ID and MitID (DK)
transaction_te-xt_sha256	Base64 encoded SHA256 digest of the MitID transactiontext identity provider parameter.	Applicable eID: MitID (DK)
transaction_te-xt_type	The type of the transaction text. This may either be html or text.	Applicable eID: MitID (DK)
Jti	JWT ID	The unique transaction ID
authentication_result	Authentication result	Applicable eID: IN Groupe ID Verifier
chip_clone_detection	Status of chip clone detection	Applicable eID: IN Groupe ID Verifier
facematch_level	Face match level	Applicable eID: IN Groupe ID Veriifer
issuing_country	Issuing country (country code)	Applicable eID: IN Groupe ID Verifier
interpreted_issuing_country	Issuing country (country name)	Applicable eID: IN Groupe ID Verifier

cert

Claim	Description	Value/constraint
c	The country associated with the end user's eID.	Applicable eID: All (if available)
certificate	The end user's certificate.	Applicable eID: BankID (NO), and BankID (SE)
certpolicyoid	The certificate policy of the end user's certificate.	Applicable eID: All (if available)
cn	The common name from the end user's certificate.	Applicable eID: All (if available)
dn	The distinguished name from the end user's certificate.	Applicable eID: All (if available)
smartid_certificate_level	See description at Smart-ID page.	Applicable eID: Smart-ID

email

Claim

Description

Value/constraint

email

The end user's e-mail address.

Applicable eIDs:

BankID (NO), BankID on mobile (NO) and Verimi.

email_verified

This claim tells if the e-mail address has been verified or not.

One of:

true | false

Applicable eIDs:

Verimi

nemid.pid

Claim

Description

Value/constraint

nemid.pid

If the user has a NemID identity, this will be the user's unique NemID PID value.

Applicable eIDs:

MitID

organisation

Claim

Description

Value/constraint

authorized_to_represent

The organisation number (Danish CVR number) the user has selected and is authorised to represent.

The user can select a company when using the Private MitID - on behalf of companies functions.

Applicable eID:
MitID (DK)

organisation_name

Private MitID:

The name of the organisation the user logs in on behalf of.

For Finnish Bank ID:
The organisation name connected to the user's legal person ID.

Applicable eID:
MitID (DK) and Finnish Bank ID (FI)

organisation_number

For MitID:

The organisation number received when using the Private MitID - on behalf of companies function.

For Finnish Bank ID:
The organisation number (VAT) connected to the user's legal person ID.

Applicable eID:
MitID (DK) and Finnish Bank ID (FI)

phone

Claim

Description

Value/constraint

phone_number

The end user's phone number.

Applicable eIDs:

BankID (NO), Mobiilivarmenne (FI) and Verimi

phone_number_verified

This claim tells if the phone number has been verified or not.

One of:

true | false

Applicable eIDs:

Verimi

profile

Claim	Description	Value/constraint
birthdate	Date of birth in the format DD.MM.YYYY	Applicable eID: BankID (NO), Finnish Bank ID (FI) and Mobiilivarmenne (FI), AusweisApp
family_name	The end user's surname	Applicable eID: All (if available)
given_name	The end user's given name.	Applicable eID: All (if available)
name	The end user's full name.	Applicable eID: All (if available)
nemlogin.age	Age of Erhverv user	Applicable eID: MitID (DK)
nemlogin.auth_to_repr	CVR number of the Organisation for which the MitID user is authorized to represent.	Applicable eID: MitID DK)
nemlogin.cpr_uuid	Unique ID for Erhverv user	Applicable eID: MitID (DK)
nemlogin.cvr	Company CVR for Erhverv user	Applicable eID: MitID (DK
nemlogin.date_of_birth	Date of birth for Erhverv user	Applicable eID: MitID (DK)
nemlogin.email	Email address for Erhverv user	Applicable eID: MitID (DK)
nemlogin.family_name	Family name for Erhverv user	Applicable eID: MitID (DK)
nemlogin.given_name	Given name for Erhverv user	Applicable eID: MitID (DK)
nemlogin.name	Full name of Erhverv user	Applicable eID: MitID (DK)
nemlogin.nemid.rid	Employee certificate RID from NemID migration (or assigned)	Applicable eID: MitID (DK)
nemlogin.org_name	Company name for Erhverv user	Applicable eID: MitID (DK)
nemlogin.p_number	Company P number for Erhverv user	Applicable eID: MitID (DK)
nemlogin.persistent _professional_id	MitID Erhverv’s Global UUID/ID from EIA	Applicable eID: MitID (DK)
nemlogin.se_number	Company SE number for Erhverv user	Applicable eID: MitID (DK)
auth_files_url	A URL to download authentication files. Read more about the authentication files.	Applicable eID: IN Groupe ID Verifier
document_number	The Document Number	Applicable eID: Verimi IDCard IN Groupe ID Verifier
document_type	The Document Type	Applicable eID: Verimi IDCard IN Groupe ID Verifier, AusweisApp
place_of_birth	Place of Birth	Applicable eID: Verimi IDCard IN Groupe ID Verifier, AusweisApp
date_of_expiry	Date of Expiry of the document	Applicable eID: Verimi IDCard IN Groupe ID Verifier, AusweisApp
citizenship	Citizenship of the end user	Applicable eID: Verimi IDCard
issue_date	The Document issue date	Applicable eID: Verimi IDCard
issuing_authority	The Document issuing authority	Applicable eID: Verimi IDCard
verification_method	Verification Method	Applicable eID: Verimi IDCard
verification_date	Date of verification	Applicable eID: Verimi IDCard
gender	Gender	Applicable eID: IN Groupe ID Verifier
nationality	Nationality (country code)	Applicable eID: IN Groupe ID Verifier, AusweisApp
interpreted_nationality	Nationality (country name)	Applicable eID: IN Groupe ID Verifier
primary_identifier	Predominant componet of the name of the holder	Applicable eID: IN Groupe ID Verifier
secondary_identifier	Secondary component of the name of the holder	Applicable eID IN Groupe ID Verifier

ssn

Parameter	Description	Value/constraint
dk_ssn	Danish SSN	Applicable eID: MitID (DK)
fi_ssn	End user's Finnish personal identity code (henkilötunnus).	Applicable eIDs: Finnish Bank ID (FI) and Mobiilivarmenne
fi_satu	Finnish unique identification number (sähköinen asiointitunnus).	Application eID: Finnish Bank ID (FI)
no_ssn	Norwegian SSN	Applicable eID: BankID (NO), and Buypass
se_ssn	Swedish SSN	Applicable eID: BankID (SE)
smartid_document_number	See description at Smart-ID page.	Applicable eID: Smart-ID
ssn	Social security number / National identifier	Applicable eIDs: BankID (NO), Buypass (NO), MitID (DK), BankID (SE), Finnish Bank IDs (FI) and Mobiilivarmenne.
ssn_issuing_country	The country that issued the user's ssn.	Currently supported: Smart-ID, Mobile-ID and Buypass.
personal_number	The value stored in the personal_number field in the passport/id card. Value is as defined by document issuer, can be SSN, or similar.	Applicable eID IN Groupe ID Verifier

address

Claim

Description

Value/constraint

address

The end user's address

Applicable eIDs:

BankID (NO), Mobiilivarmenne (FI) and Verimi, AusweisApp

ageverifyxx

Claim

Description

Value/constraint

age_verified

This claims tells if the age has been verified or not

One off:

true | false | inconclusive

Applicable eIDs: Finnish BankID (FI)

age_verificaion

Returns the value as ageverifyxx where xx denotes the age to be verified

Applicable eIDs: Finnish BankID (FI)

ID Token sample

Copy to clipboard

.xml

CODE

{
  "sub" : "mitid:PID:xx-xx-xx-xx",
  "dk_ssn" : "xx",
  "amr" : "mitid",
  "mitid.uuid" : "xx-xx-xx-xx",
  "iss" : "https://www-ident-test.nets.no/oidc",
  "dn" : "CN=Frida Jørgensen",
  "pid" : "PID:xx-xx-xx-xx",
  "nonce" : "nonce07/06/2023",
  "aal" : "https://data.gov.dk/concept/core/nsis/High",
  "ssn" : "xx",
  "aud" : "MER2",
  "ial" : "https://data.gov.dk/concept/core/nsis/High",
  "mitid_amr" : [ "code_app" ],
  "exp" : 1686117229,
  "identity_type" : "private",
  "iat" : 1686116329,
  "jti" : "xx-xx-xx-xx-xx",
  "loa" : "https://data.gov.dk/concept/core/nsis/High"
}

ID Token encryption

Customers can request IN Groupe to encrypt all ID Tokens. The ID Token will be encrypted using RSA-OAEP-256 and AES, as described by RFC 7516. JWE Compact serialization is used and the encryption is done after signing, which means that the customer needs to decrypt the ID Token before being able to validate the signature.

The customer will need to provide IN Groupe with one of the following options:

A URL to a JWKS endpoint where IN Groupe can look up a public key for encryption purposes. It is optional to also provide a key id. Otherwise the first public key in the response from the endpoint will be used.
The RSA key members and the key type in JSON format.

Note: The use of encrypted ID Token is required for Finnish Trust Network customers offering identification with Finnish Bank IDs and Mobiilivarmenne.

Get in touch with support for more details Contact Support

OIDC discovery URL

OIDC discovery request has to be made to get the token_endpoint and jwks_uri. This can be done programmatically or manually to get the token_endpoint uri and jwks_uri.

The OIDC discovery URL:

Customer test: https://www.ident-preprod1.nets.eu/oidc/.well-known/openid-configuration
Production: https://www.e-ident.nets.eu/oidc/.well-known/openid-configuration

OIDC UserInfo endpoint

The UserInfo endpoint returns claims about the authenticated user, including some claims not available in the ID token. Accessing this endpoint requires an access token. This token is returned together with the ID token. The access token shouldn't be expired to get the authentication data. The endpoint response will be in JSON format.

For SAML protocol, the access token will be available in the SAML response.

The OIDC userinfo endpoint URL:

Customer test: https://www.ident-preprod1.nets.eu/oidc/userinfo
Production: https://www.e-ident.nets.eu/oidc/userinfo

Requesting authentication data from UserInfo endpoint

Copy to clipboard

.sh

CODE

curl https://www.ident-preprod1.nets.eu/oidc/userinfo -H "Authorization: Bearer <<access token>>"

Sample UserInfo endpoint response

Copy to clipboard

JavaScript

CODE

{
	"sub" : "se_bankid:xxxxxxxxxxxx",
	"user_signature" : "<<user_signature>>",
	"user_cert_ocsp" : "<<user_cert_ocsp>>",
	"notbefore" : "20210112230000",
	"amr" : ["se_bankid"],
	"notafter" : "20230113225959",
	"iss" : "https:\/\/www.ident-preprod1.nets.eu\/oidc",
	"given_name" : "Test",
	"nonce" : "nonce06\/09\/2021",
	"auth_device_ip" : "xxx.xxx.xxx.xx",
	"ssn":"xxxxxxxxxxxx",
	"access_token" : "QzLCDFodNn0y4XdGY2AVKRdDxY2JFiHLDZm0bz8aV-E",
	"aud" : "Test merchant",
	"se_ssn" : "xxxxxxxxxxxx",
	"name" : "Test Testesen",
	"exp" : 1630915131,
	"iat" : 1630914231,
	"family_name" : "Testesen",
	"jti" : "278b78056a8349f68be8679d7f908159"
}

Userinfo endpoint claims

The userinfo endpoint may return these claims in addition to the claims in the ID Token.

Claim	Description	Value/Constraint
picture	Picture of the end user as read from the card	Currently supported for Belgian eID (BE)
user_cert_ocsp	The OCSP response returned from the eID when validating the authentication.	Currently supported for: BankID (NO) BankID (SE)
user_signature	The signature returned from the eID during the authentication.	Currently supported for: BankID (NO) BankID (SE)
verification_info	Proof of authentication as provided by the electronic ID provider.	Currently supported for: IN Groupe ID Verifier
access_token	Credential issued by authorization server for accessing protected APIs	Supported for all eIDs
face_scan_time	Time when face scan was completed	Currently supported for: IN Groupe ID Verifier
document_scan_time	Time when document scan was completed	Currenly supported for: IN Groupe ID Verifier
transaction_start_time	Time when the transaction was started	Currently supported for: IN Groupe ID Verifier
transaction_end_time	Time when the transaction was completed	Currently supported for: IN Groupe ID Verifier

Recommended reading

The OIDC standard is described here: http://openid.net/connect/

Referenced documentation: http://openid.net/specs/openid-connect-core-1_0.html

Reference implementations:

OpenID Connect identification

PKCE flow

CIBA flow

Implementation

Requesting for a CIBA transaction

Requesting for CIBA transaction with login hint and binding message

Retrieving the CIBA ID token

Identification request parameters

Mandatory

Optional

Optional eID Specific parameters

CIBA specific parameters

Signed request

ID Token

openid

​cert

email

nemid.pid

organisatio​n

phone

profile

ssn​​​

address

ageverifyxx

ID Token encryption

OIDC discovery URL

OIDC UserInfo endpoint

Requesting authentication data from UserInfo endpoint

Sample UserInfo endpoint response

Userinfo endpoint claims

cert

organisation

ssn
